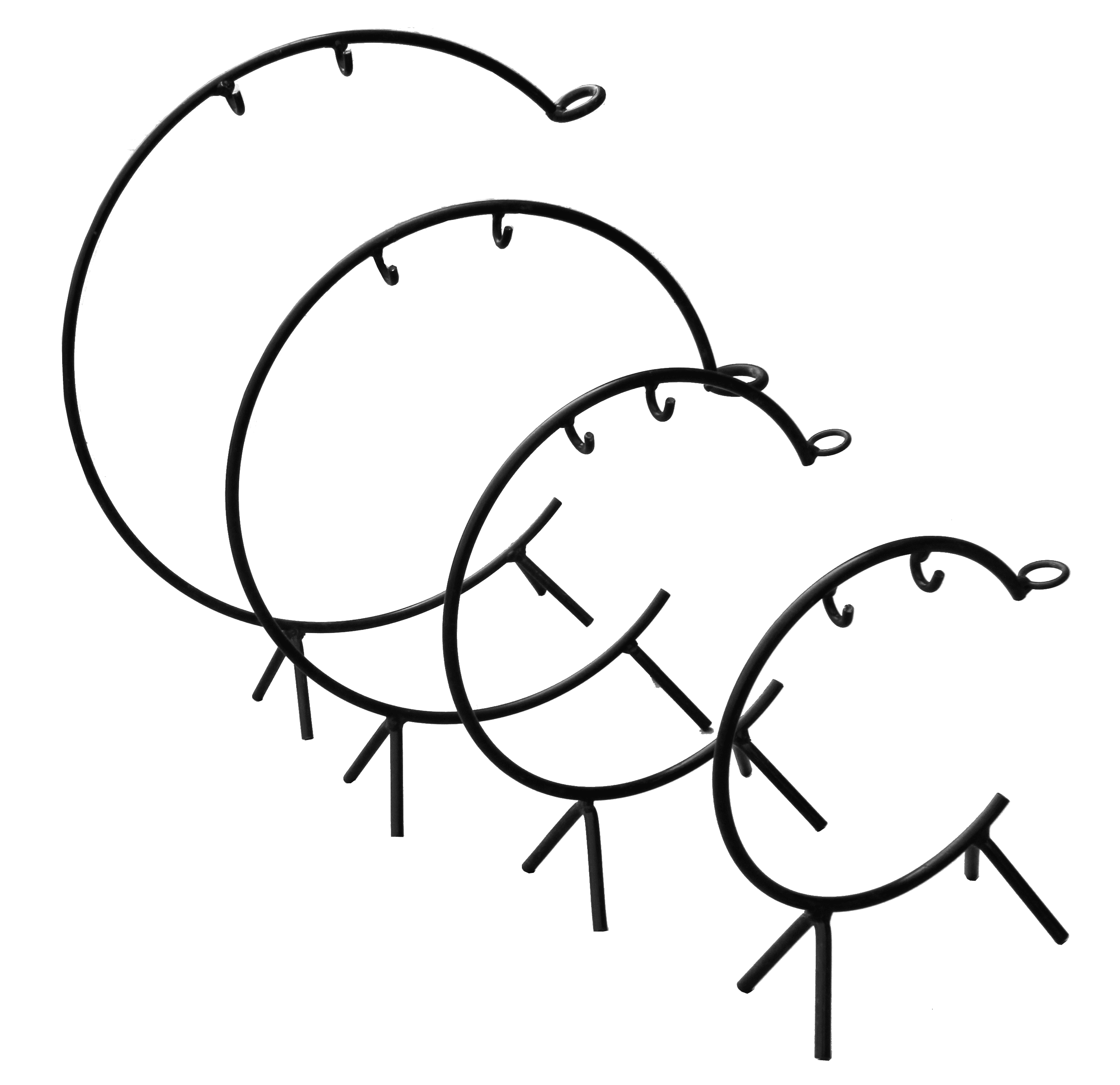

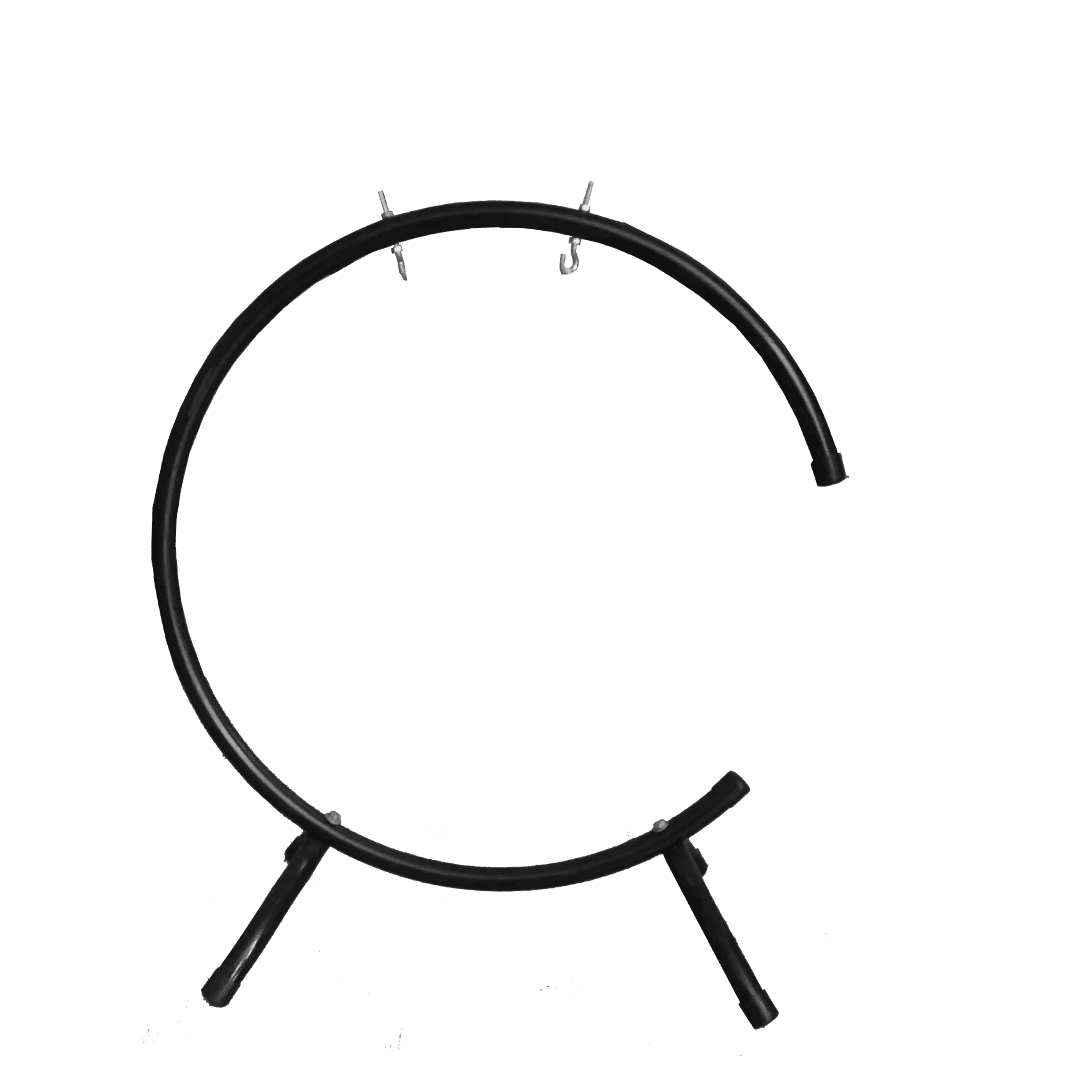

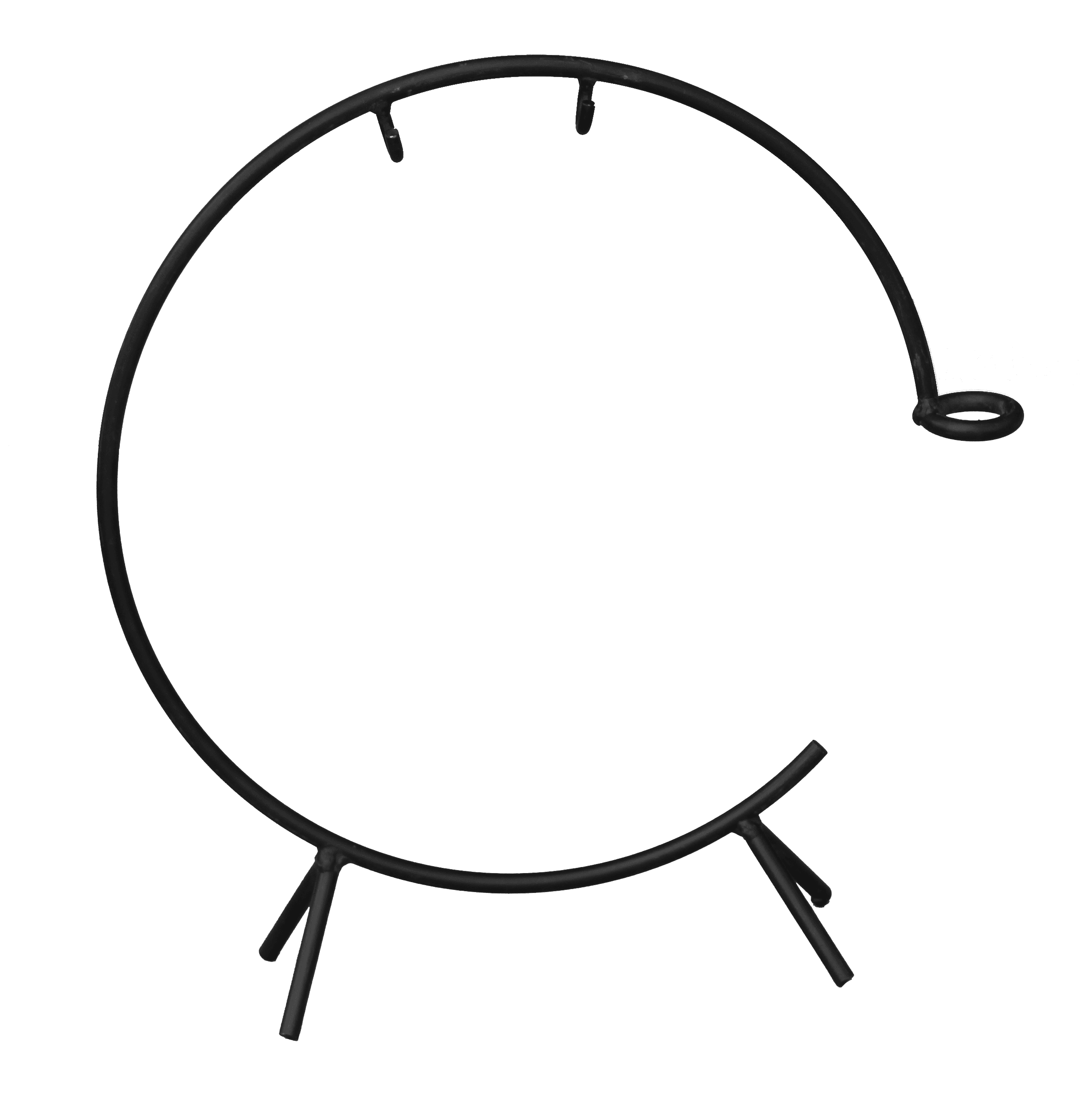

C-shaped gong stand

square gong stand
c shaped gong stand
c shaped gong stand
c shaped gong stand
SKU N/A Category

Additional information

Material

Steel

Color

Black

Surface

Painted

Diameter

10 inch, 12 inch, 14 inch, 16 inch, 18 inch, 20 inch, 22 inch, 24 inch, 26 inch, 28 inch, 30 inch, 32 inch, 34 inch, 36 inch, 38 inch, 40 inch, 42 inch, 44 inch, 47 inch, 51 inch, 6 inch, 7 inch, 8 inch

Price range: $17.00 through $129.00

ASK FOR WHOLESALE QUOTE

Prouduct Details

Display and play your gongs with the sleek Mosico C-Shaped Gong Stand, featuring an elegant curved design that provides excellent stability and visual appeal.

C-Shape Design Benefits

Elegant Profile

  • Curved C-frame creates beautiful visual presentation
  • Minimalist design complements any performance space
  • Takes up less floor space than traditional A-frame stands

Stable Support

  • Wide base provides excellent stability
  • Low center of gravity prevents tipping
  • Secure gong mounting system

Practical Features

Adjustable Height

  • Multiple height settings for different gong sizes
  • Easy adjustment mechanism
  • Accommodates gongs from 16″ to 36″

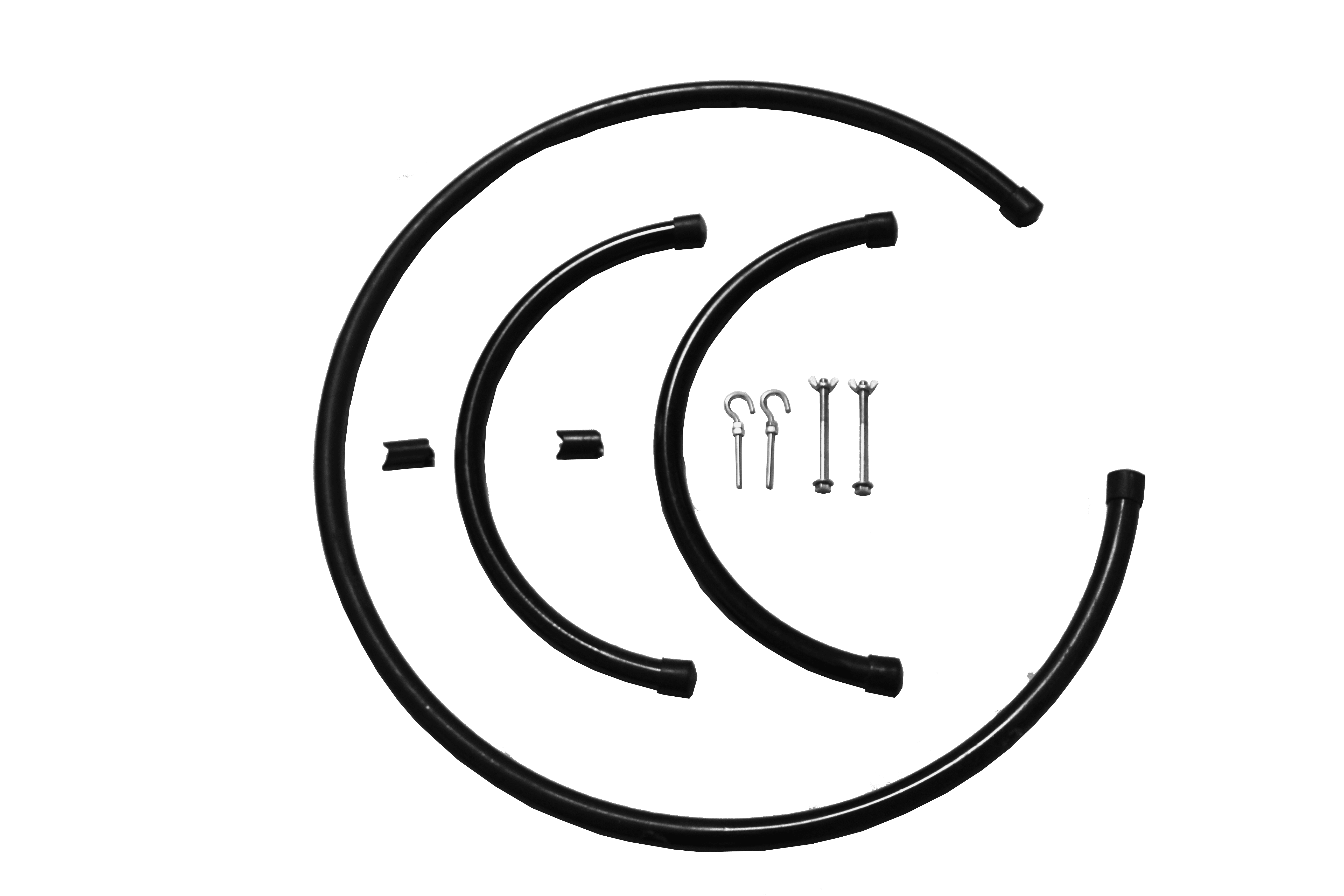

Easy Assembly

  • Simple setup with minimal hardware
  • Portable design for transport
  • Lightweight yet sturdy construction
cymbal display (18)
cymbal display (12)
greg artist (2)

Address

Fanjia Vililage, Shuizhai Town, Zhangqiu City, Shandong, China

Get In Touch

  • +86 130 6506 7610
  • arborea@jsycymbals.com
cymbal production process (45)
cymbal production process (7)
cymbal production process (9)
cymbal production process (5)
cymbal production process (56)

Porduction

Learn about the materials and construction techniques used in crafting our cymbals. From traditional bronze alloys to modern innovations, our cymbals are built with precision and care to deliver outstanding performance and durability. Dive into the world of cymbal manufacturing and understand the factors that contribute to their distinct tones.
Mixing The Elements
We use highest quality B20 Bronze alloy. Basically B20 Bronze alloy is a mixture of 80% Copper and 20% Tin ,and B20 is known as the most musical of all alloys. Our centuries old secret process gives the alloy its strength, durability and flexibility. Without the secret process, the metal will be hard but very brittle and can break like a glass easily. That secret process has an extremely important role on producing musical sounding cymbals.
Casting
In the first step of producing cast cymbals, the proper mixture of metals are melted and combined in the melting pot which they soon become castings. Melting allows the copper and tin mix in a certain heat and that heat evaporates all impurities in the alloy.The amount of the molten alloy in every mold can be different depending on the cymbal type. After pouring, the alloy gets hardened and becomes what we call Castings. Now these castings are ready for the next step which we call “Heating"
Heating & Rolling
The castings will be heated around 700-800 C in our oven. Each casting is heated evenly in the oven by our skilled craftsmen. The heated castings are now soft and ready to go under the rolling machine to become metal discs which we call “blanks”. These blanks are heated up and rolled again several times until the blank reaches its desired thickness. This process also allows the metal molecules bond together perfectly and makes the metal more durable. Then blanks are set aside to cool before the next process
Pressing The Bell
Cooled down blanks will be heated again then put it in the model for bell pressing. After cutting the blanks into their proper shape, we get the primary cymbals
Hammering
This process is the first and the most important phase of shaping the sound of a cymbal. Hammering is done by our skilled craftsmen, using centuries old hammering techniques. These techniques determine the dark, complex and musical sound qualities of ARBOREA Cymbals. In its nature, hammering process requires mastery, skill and lots of hard work cause in handmade cymbals, the profile of a cymbal is given only by hammer hits. The cymbals sound was tuning by our experienced craftsmen.
Lathing
Lathing is the other very important phase of cymbal making which directly effects the sound of a cymbal. It should definitely be done by highly skilled craftsmen. Lathing cuts circular grooves on a cymbal and lets the vibrations travel on the surface of a cymbal easily.
Testing And printing
After lathing, some cymbals will be polished depend on the surface requirement, the finished cymbals are sent to final testing. Our product specialist takes care of each cymbal and does the final visual and audio tests. Then the quality conformance cymbals will be printed our logos and after checking the logos ，the cymbals are ready to take their places on the shelves in our show room ,then send to the distributors,in order to be played by all levels of musicians worldwide.
